18.5" x 78" MONARCH "60" TOOLMAKERS ENGINE LATHE w/DRO - (2) CHUCKS -
#29516USD $4,950.00
Condition : For parts or not working
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
18.5" x 78" MONARCH "TOOLMAKERS" ENGINE LATHE w/DRO #29516

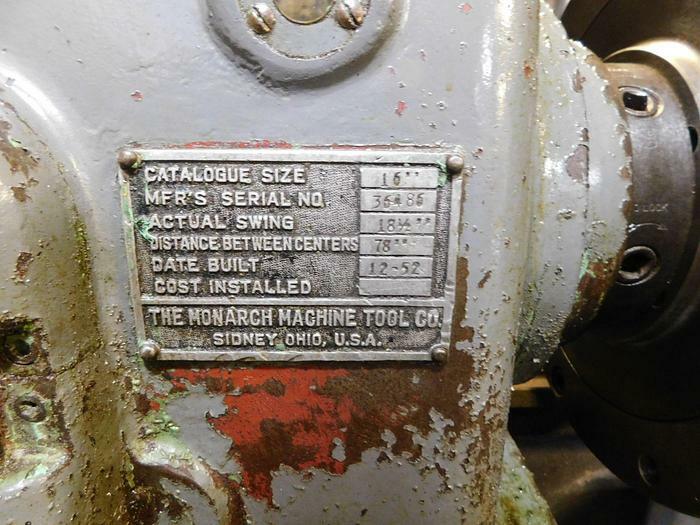

Serial No 36486, Series 60 Toolmakers
EQUIPPED WITH:
C80 Newall 2-Axis Digital Readouts
16" 6-Jaw Chuck w/Jaws
12" 3-Jaw Chuck
(3) Steady Rests
Hard Ways
(2) Removeable Coolant-Chip Pan
CATALOG SPECIFICATIONS:
Hole Thru Spindle .......... 1.56"
Swing Over Bed Ways Catalog .......... 16"
Swing Over Bed Ways Actual .......... 18.5"
Swing Over Cross-Slide .......... 10.5"
Distance Between Centers .......... 78"
Top-Slide Cross-Feed Travel .......... 3.75"
Tailstock, Spindle Diameter .......... 3.125"
Tailstock, Spindle Travel .......... 6"
(16) Spindle Speeds, Range .......... 17 to 700 RPM
(66) Carriage Longitudinal Feeds .......... .0014 to .0841 IPR
(66) Thread Changes, Range .......... 2 to 120 TPI
Floor Space Required L x D .......... 12'2" x 3'8"
Weight Approximately .......... 4730 LBS
This machine has shifting problems in the headstock, selling as is.
F.O.B. OUR WAREHOUSE
.
