Monarch 10" EE TUBE Lathe 1960 Operator, Parts & Schematic Electronic

Description

Monarch 10" EE Lathe

5HP DC  Module Drive

Serial number EE-51891

Operator,  Parts and Schematic

55 pages

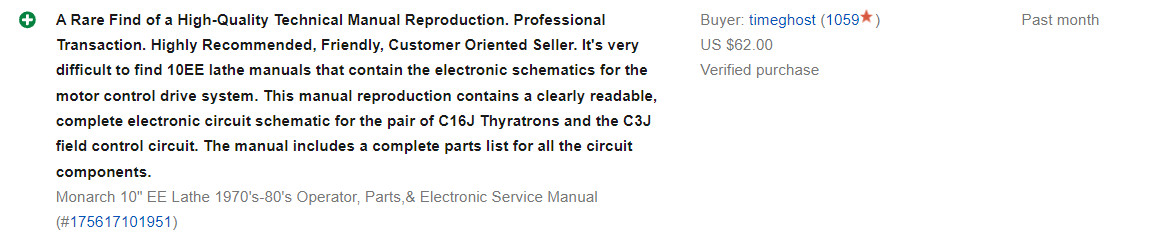

(PLEASE READ THE FEEDBACK in the pictures above! IT BELONGS to this listing. timeghost does a MUCH better job of explaining the tube portion of these machines. )

The following information was provided by timeghost.......

"10EEs were being built during WW2. Material and component shortages caused the design of 10EEs to vary from month to month.  In 1941, the massive hydraulic/hydrostatic variable-speed unit manufactured by Sundstand that provided the variable speed drive for 10EEs up to that time was replaced by a three-phase AC motor driving a 3 HP DC generator which provided power for an electronic variable-speed DC motor for the lathe. These are today referred to as, the “Motor-Generator” drive units. There are many of these still around for sale in the used machinery marketplace. The manual, EE – 41007, RI 01075, 127-126165,  covers this type of drive system."

Our manual.... https://www.ebay.com/itm/186443853520

" In 1949, the three-phase AC motor-DC generator drive system was replaced by a WiaD (Works in a Drawer) system that used electronic-tube controlled thyratrons to rectify AC current to a variable DC voltage to drive the lathe’s DC motor. Many vacuum tubes were used to control the rectifier tubes and other functions. This "works in a drawer" set-up is described by the vacuum tube schematic that you included in my purchase. Through the 1950s, the WiaD drive was redesign and improved."

Our Manual.... https://www.ebay.com/itm/176379703255

"In 1960, the WiaD drive was replaced by fitting the 10EE with a more powerful 5 HP DC motor and a "module drive" that used an all-solid-state electronic module to control the electronic components, with the exception of the thyratrons. This is the motor control system that is covered in the EE-51891 manual that I purchased from you. This is the motor drive system I wanted an electronic schematic for, which is contained in the manual. There were around 3,000 10EE lathes sold with this drive system."

This Manual.

YOU GET A COPY AND A EMAILED PDF!

You are getting one Brand New Clean copy of this manual.
